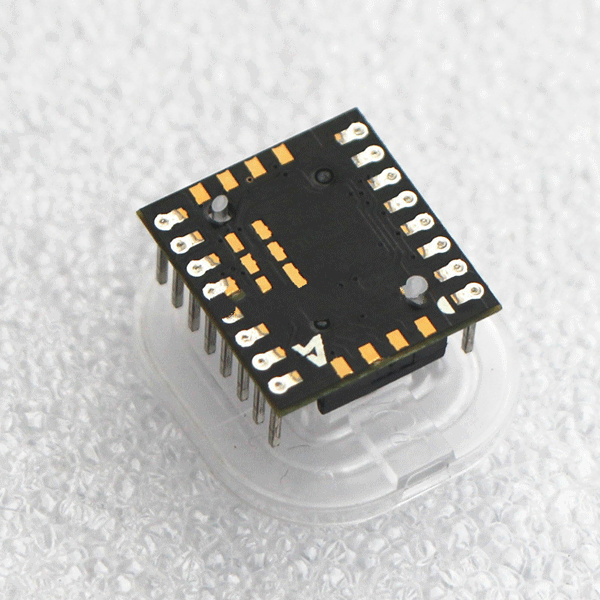

ADNS-9800 Laser Motion Sensor

Features:

  • On-Board power regulator
  • Fully assembled and tested
  • 3.3V or 5V compatible
  • Advanced technology 832-865 nm wavelength VCSEL
  • No laser power calibration needed
  • Compliance to IEC/EN 60825-1 Eye Safety
  • On-chip laser fault detect circuitry
  • Self-adjusting frame rate for optimum performance
  • Frame rate up to 12,000 fps
  • Resolution up to 8200 cpi with ~200 cpi step
  • Focusing Lens included
  • Works with Arduino SPI library
  • Efficient Interrupt based operation

Applications:

  • Corded gaming laser mice
  • Optical trackballs
  • Motion input devices
  • Robotics

Pinout:

  • MI = MISO
  • MO = MOSI
  • SS = Slave Select / Chip Select
  • SC = SPI Clock
  • MOT = Motion (active low interrupt line)
  • AG = Analog Ground (connect to common ground near power supply)
  • DG = Digital Ground (connect to common ground near power supply)
  • VI = Voltage in up to +6V

Dimensions:

  • Diameter: 31.5mm
  • Screw holes: 27mm between centers
  • Screw hole size: 2.26mm (fits 2-56 screw)
  • Height: 9.7mm
